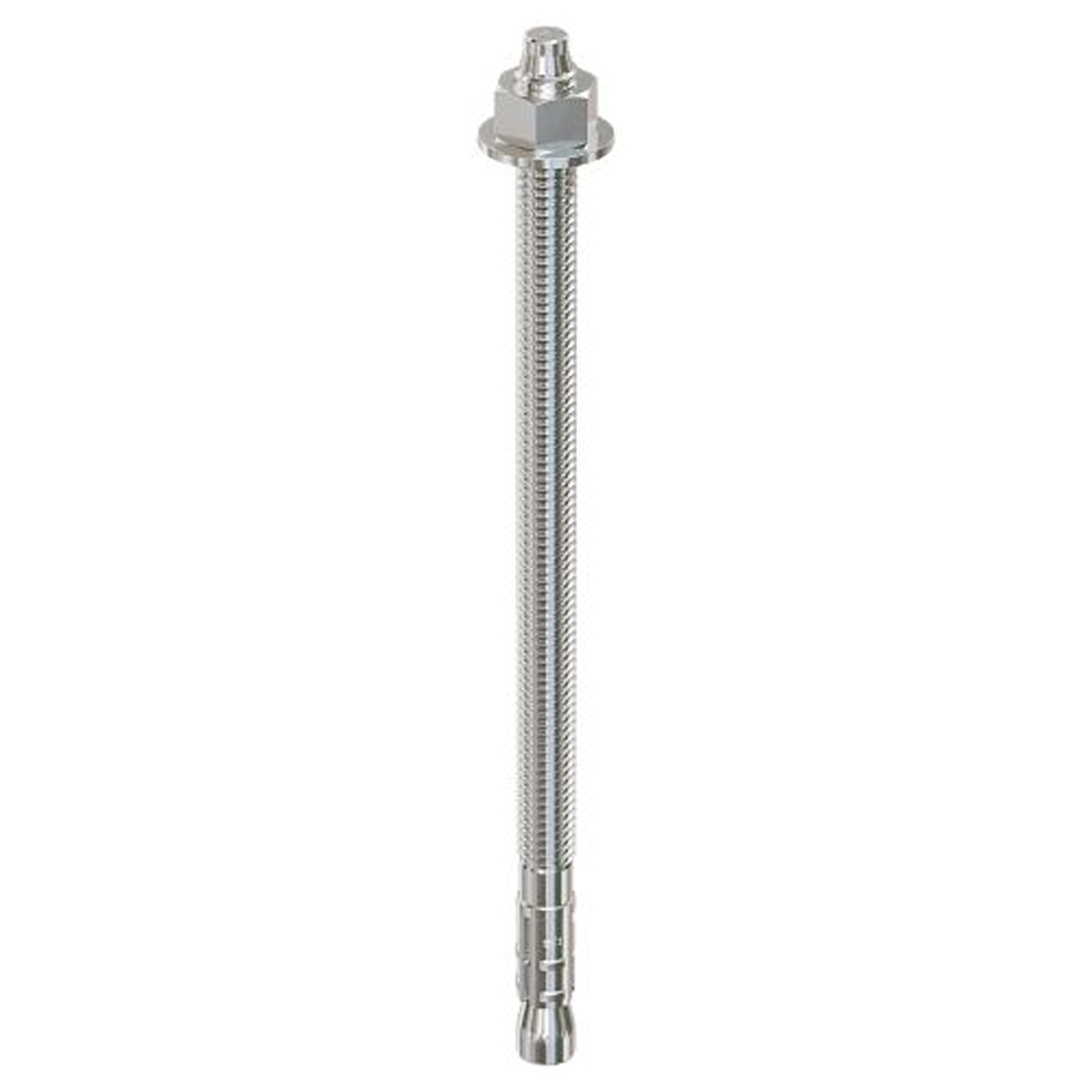

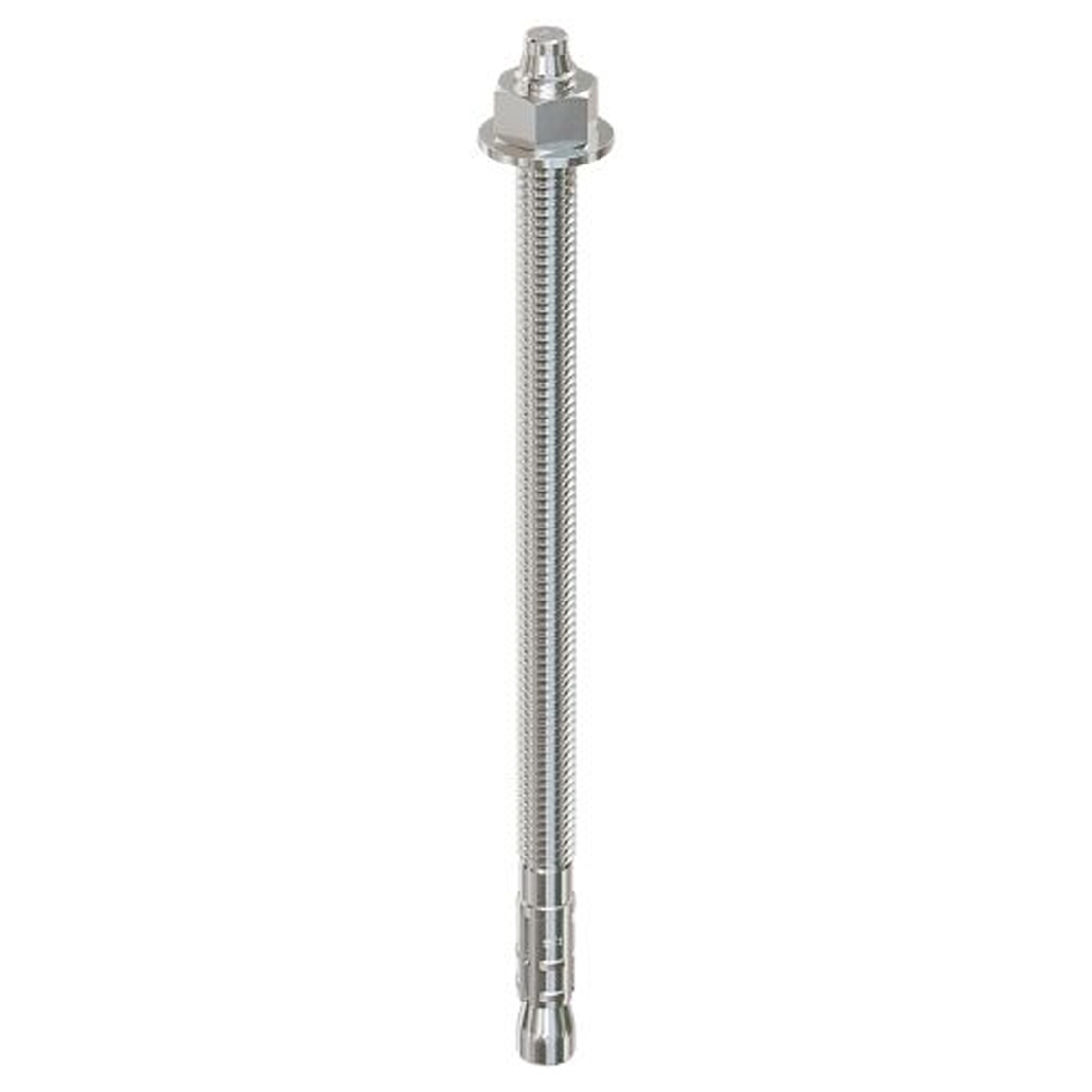

50PK Strong-Bolt®2 Wedge Anchor 3/8 x 7in Stainless Steel Unassembled

Price:

Brand: Simpson Strong Tie

SKU: STB2-377004SS

UPC Code: 707392234449

Overview
Dimensions
Specifications
Contact Us

Code listed for cracked and uncracked concrete, and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 stainless-steel wedge-anchor offers long-lasting corrosion resistance for a wide variety of service environments. Key Features:.

Chamfered top designed to prevent mushrooming during installation.
Qualified for static and seismic loading conditions (seismic design categories A through F).
Suitable for horizontal, vertical and overhead applications.
Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck.
Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes.
Tested per ACI355.2 and AC193.
Material: Stainless steel (Type 304; Type 316).

Products specifications

Attribute name	Attribute value
PRODUCT
Width (cm)	9.000000
Depth (cm)	20.000000
Height (cm)	9.000000
Weight (kg)	4.440000
MASTER CASE
Quantity	4
Barcode	10707392215612
Width (cm)	20.320000
Depth (cm)	38.500000
Height (cm)	10.200000
Weight (kg)	17.800000
PALLET
Quantity	0.000000
Pallet Volume	0.000000
Width (cm)	0.000000
Depth (cm)	0.000000
Height (cm)	0.000000
Weight (kg)	0.000000

Product Dimention

Send us a message

Your name *

Your email *

Enquiry *

Chamfered top designed to prevent mushrooming during installation.
Qualified for static and seismic loading conditions (seismic design categories A through F).
Suitable for horizontal, vertical and overhead applications.
Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck.
Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes.
Tested per ACI355.2 and AC193.
Material: Stainless steel (Type 304; Type 316).
