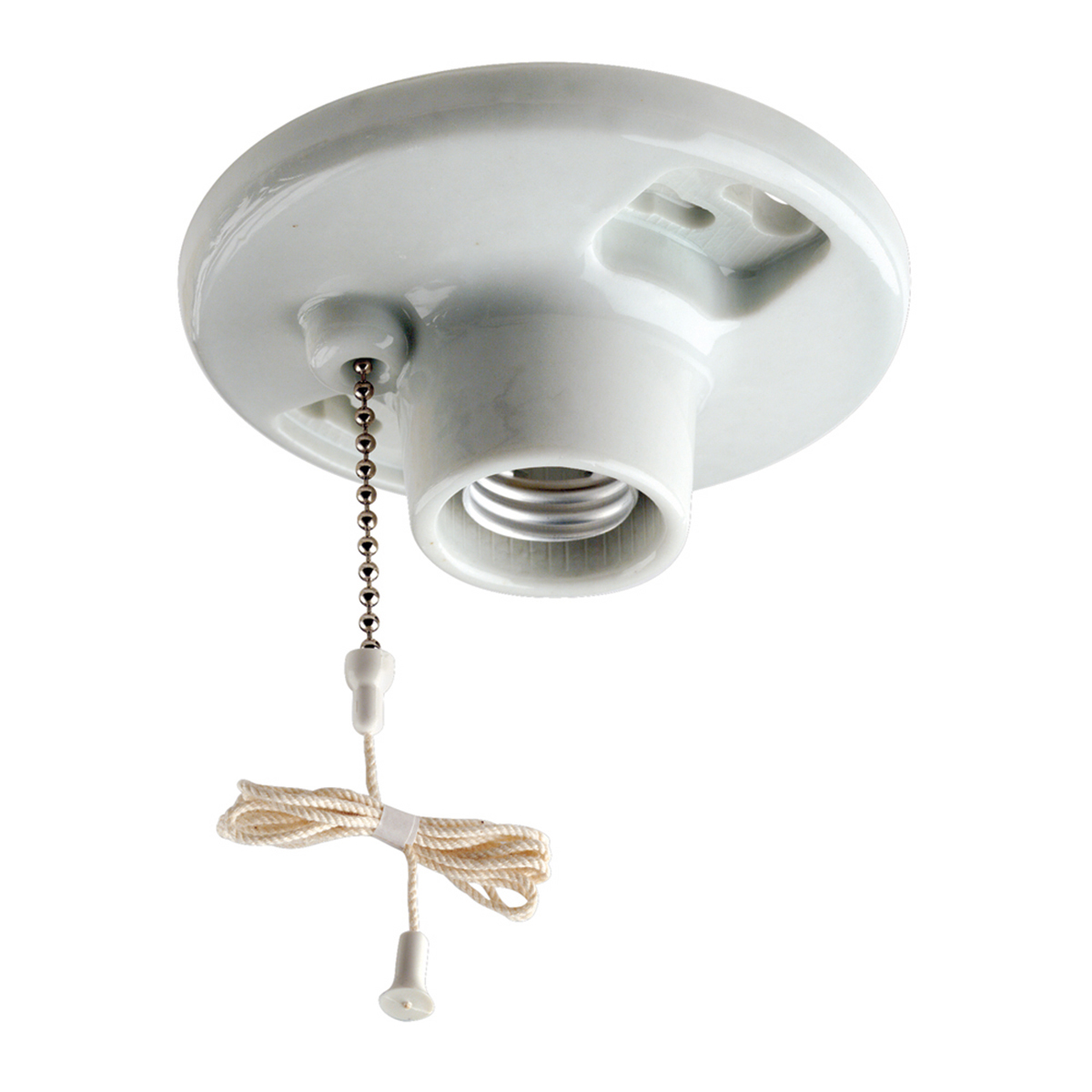

Lamp Socket Pull Chain Outlet Box Mount 1 Circuit Porcelain Wht

Price:

Brand: Leviton

SKU: 83018657

UPC Code: 078477186572

Overview
Dimensions
Specifications
Contact Us

Leviton produces lamp holders for virtually every light source equipped with incandescent; fluorescent; or LED lamps. Lamp-holders include incandescent medium base; and specialty sizes & fluorescent lamp holders; in addition to a large line of porcelain lamp holders including pulse-rated mogul-base products; and an extensive selection of devices for high-intensity lamps.

Pull chain.
Single circuit; top wired.
Made from One-Piece.
Medium Lamp Base.
Light Type: Incandescent.
660W/250V.
Standards and Certifications: UL/CSA/NOM.
Wiring Access : top Wired.
Body Material: Glazed Porcelain.
Single Circuit.
Color: White.
Fits Outlet Box Size: 3¼in or 4in.
Mounting Type: Twist-Lock.
Termination: 2 Terminal Screws.
Torque Range: 14 – 18 in.-lbs.

Products specifications

Attribute name	Attribute value
PRODUCT
Width (cm)	5.500000
Depth (cm)	9.500000
Height (cm)	4.500000
Weight (kg)	0.180000
INNER CASE
Quantity	50
MASTER CASE
Quantity	50
Barcode	10078477186579
Width (cm)	3.480000
Depth (cm)	24.130000
Height (cm)	13.180000

Product Dimention
